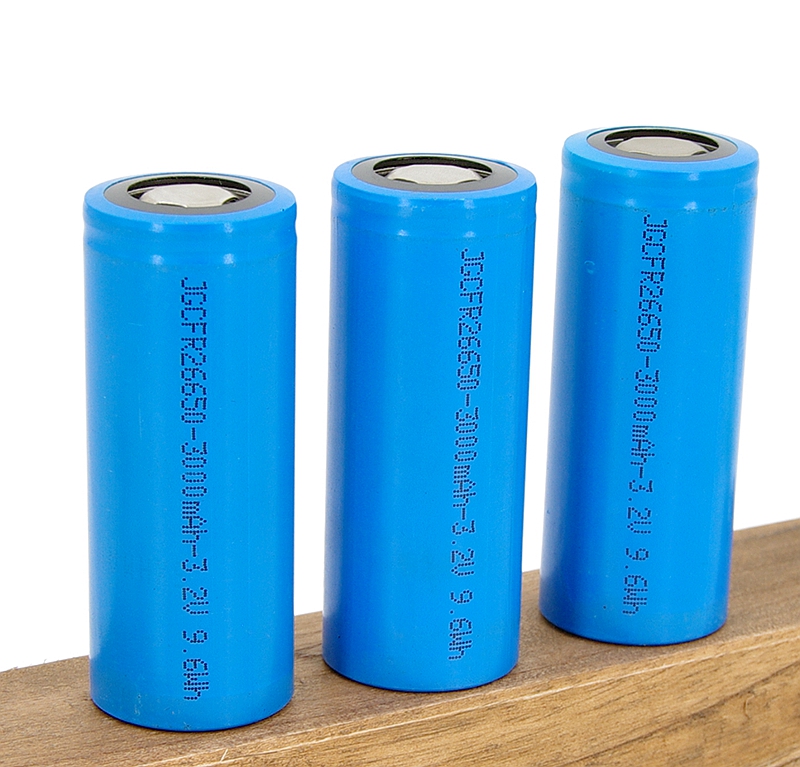

1ICR 26650 3000mAh 3.2v

Main technical parameter of the 26650 3000mAh low temperature lithium batteries:NO.ItemStandardNote1Standard Capacity3000 mAh0.5C,(current value of 3000mA at 1C)2Minimum Capacity29
Send Inquiry
Description
Argument
Products Description

Main technical parameter of the 26650 3000mAh low temperature lithium batteries:

NO.ItemStandardNote
1Standard Capacity3000 mAh0.5C,(current value of 3000mA at 1C)
2Minimum Capacity2900mAh0.5C
3Standard Voltage3.2 V
4Alternating Internal Resistance≤15mΩ25±2°C AC 1KHz Measurement

5

Charge Conditions

Cut-off Voltage3.65±0.05Vconstant-current charge to 3.65V at 0.5C, constant voltage charge to stop until 0.01C m A.
Cut-off Current0.01C
6Max. Charging Current9A
7Discharge Cut-off Voltage2.5V
8Standard Discharge Current6A

9

Fast Discharge Current

15A

This current is the maximum current recommended for the combination of cores, and the specific value should be determined according to the combination structure. The maximum operating current is set at a temperature not

exceeding 60 ℃.

10Max. Continuous Discharge Current30AOnly for single cell
11Pulse Discharge Current45A,5s

12

Cycle Characteristic

1500 times(100%DOD)

1C charging/3C discharging, capacity retention rate ≥80%.

3000 times(80%DOD)
5000 times(50%DOD)

13

Storage Temperature



-20℃~55℃

Short-term storage (< 3 months)



14Cell WeightApprox 83.5gIncludes casing

15

Working Temperature

Charge: 0℃~55℃
Discharge:-20℃~60℃
