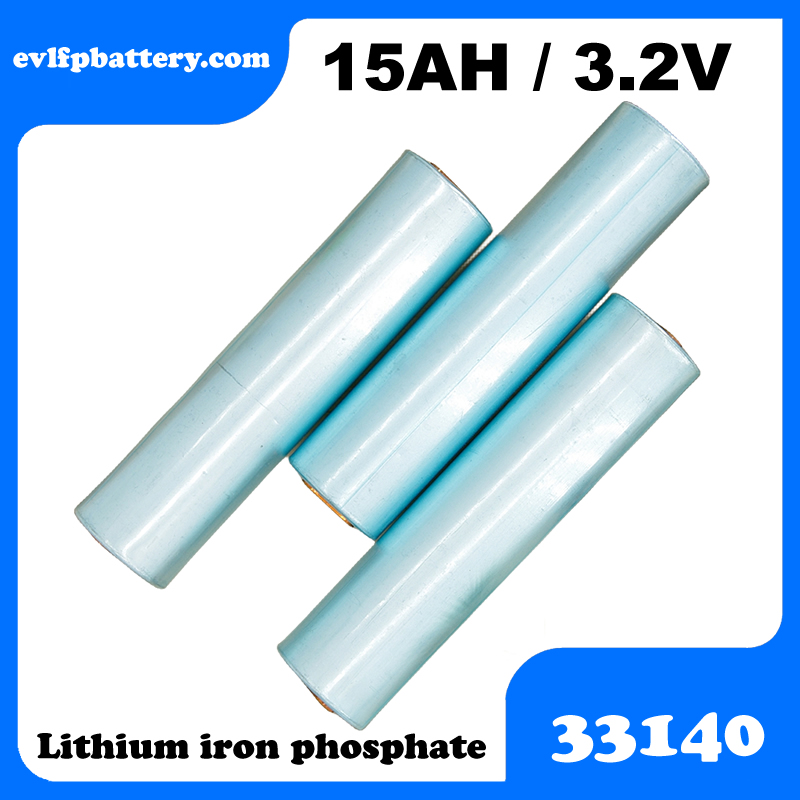

1ICR 33140 15000mAh 3.2v

Description

Argument

NO.	Item		Standard	Note
1	Standard Capacity		15000 mAh	0.2C,(current value of 15000mA at 1C)
2	Minimum Capacity		14900mAh	0.2C
3	Standard Voltage		3.2 V
4	Alternating Internal Resistance		≤3mΩ
5	Charge Conditions	Cut-off Voltage	3.9V	constant-current charge to 3.9V at 0.2C, constant voltage charge to stop until 0.01C m A.
5	Charge Conditions	Cut-off Current	0.1C
6	Max. Charging Current
7	Discharge Cut-off Voltage
8	Standard Discharge Current
9	Fast Discharge Current			This current is the maximum current recommended for the combination of cores, and the specific value should be determined according to the combination structure. The maximum operating current is set at a temperature not exceeding 60 ℃.
10	Max. Continuous Discharge Current			Only for single cell
11	Pulse Discharge Current
12	Cycle Characteristic


13	Storage Temperature		-20℃～55℃	Short-term storage (< 1 months)
			-20℃～45℃	Short-term storage (< 3 months)
			-20℃～25℃	Short-term storage (< 12 months)
14	Cell Weight		Approx 268g±3.0g	Includes casing
15	Working Temperature		Charge: 0℃～55℃
15	Working Temperature		Discharge：-20℃～60℃
