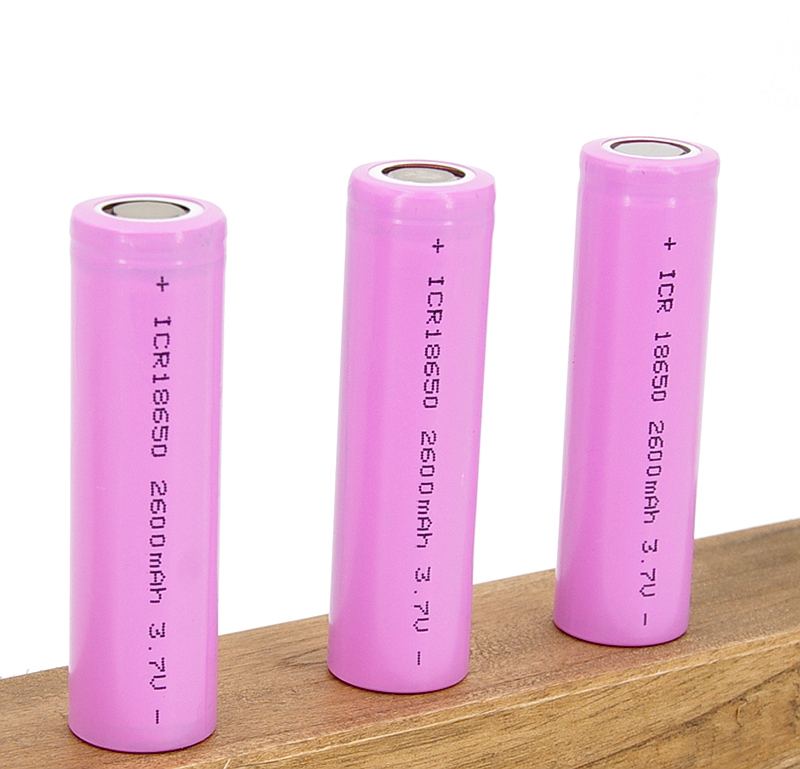

1ICR 18650 2600mAh 3.7v

Description

Argument

NO.	Item		Standard	Note
1	Standard Capacity		2600 mAh	0.2C,(current value of 2600mA at 1C)
2	Minimum Capacity		2550mAh	0.2C
3	Standard Voltage		3.7 V
4	Alternating Internal Resistance		≤35mΩ
5	Charge Conditions	Cut-off Voltage	4.2±0.02V	constant-current charge to 4.2V at 0.5C, constant voltage charge to stop until 0.01C m A.
5	Charge Conditions	Cut-off Current	0.01C
6	Max. Charging Current		1.3A
7	Discharge Cut-off Voltage		2.75V	constant current discharge
8	Standard Discharge Current		1.3A
9	Fast Discharge Current		2.6A	This current is the maximum current recommended for the combination of cores, and the specific value should be determined according to the combination structure. The maximum operating current is set at a temperature not exceeding 60 ℃.
10	Max. Continuous Discharge Current		5.2A	Only for single cell
11	Pulse Discharge Current		8A，5s
12	Cycle Characteristic		1000 times（100%DOD）	1C charging/10C discharging, capacity retention rate ≥70%.
			1500 times（80%DOD）
			2000 times（50%DOD）
13	Storage Temperature
			-20℃～55℃	Short-term storage (< 3 months)

14	Cell Weight		Approx 45g	Includes casing
15	Working Temperature		Charge: 0℃～55℃
15	Working Temperature		Discharge：-20℃～60℃
