Products Description

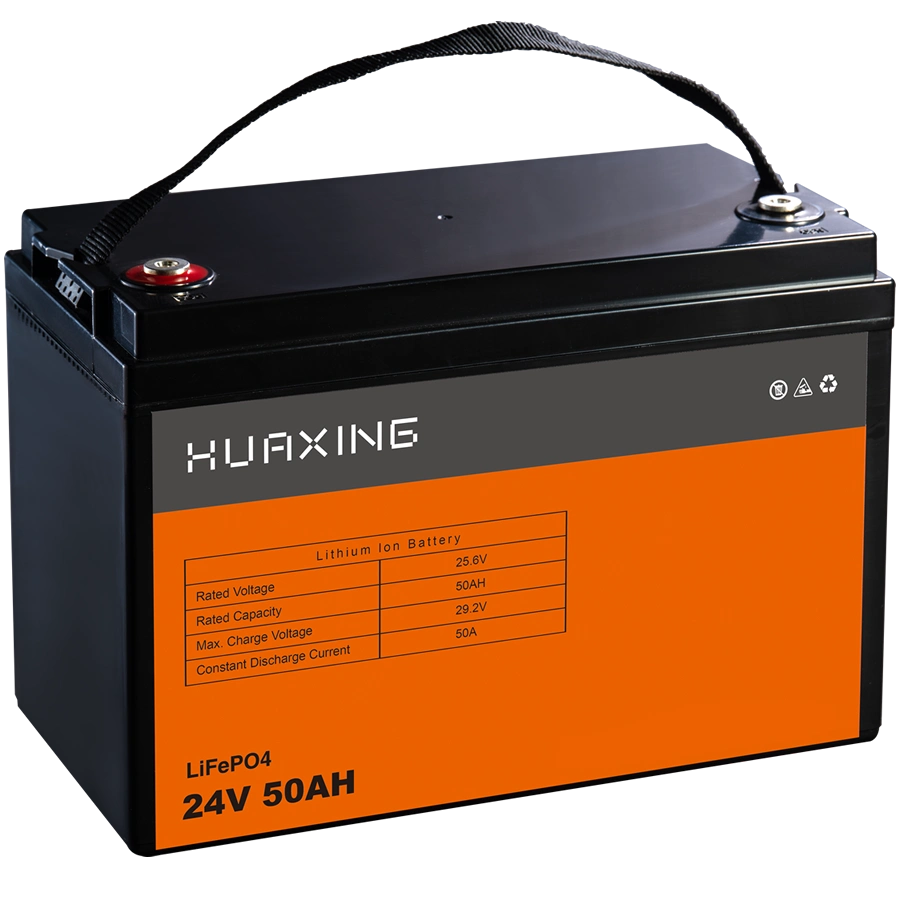

Built in Group 31 standard Size. This 24V 50Ah battery offer BMS controlled safety, long life,fast-charging performance(Optional Bluetooth function,which can real-time Bluetooth Access to battery SOC,Voltage, Current, Temperature status).
The BMS embeds smart balancing algorithms that control all cell voltages in the battery, making sure they are constantly at the same voltage level, optimizing battery capacity.
| ELECTRICAL SPECIFICATION | |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 50AH |
| Stored Energy | 1280Wh |
| Resistance | 50 mΩ |
| Self Discharge Rate | <3% per Month |
| Maximum Continous Charge Current | 25A |
| Maximum Continous Discharge Current | 50A |
| Charge Cut-off Voltage | 31.2 V |
| Discharge Cut-off Voltage | 20V |
| Cycle life(25°C) | >4000 times@80%DOD |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (mm) | L330×W170×H216 |
| Weight | 11kg |
| Terminal Type | M8 |
| Case Material | ABS |
| Enclosure protection | IP64 |
| TEMPERATURE SPECIFICATIONS | |
| Discharge Temperature | 0 to 55°C |
| Charge Temperature | -10 to 55 °C |
| Storage Temperature | -20 to 60 °C |
| OTHERS SPECIFICATIONS | |
| Short Circuit Protection | Automatically recover after removal of short |
| Life Expectancy (years) | 10 years at one cycle per day |
