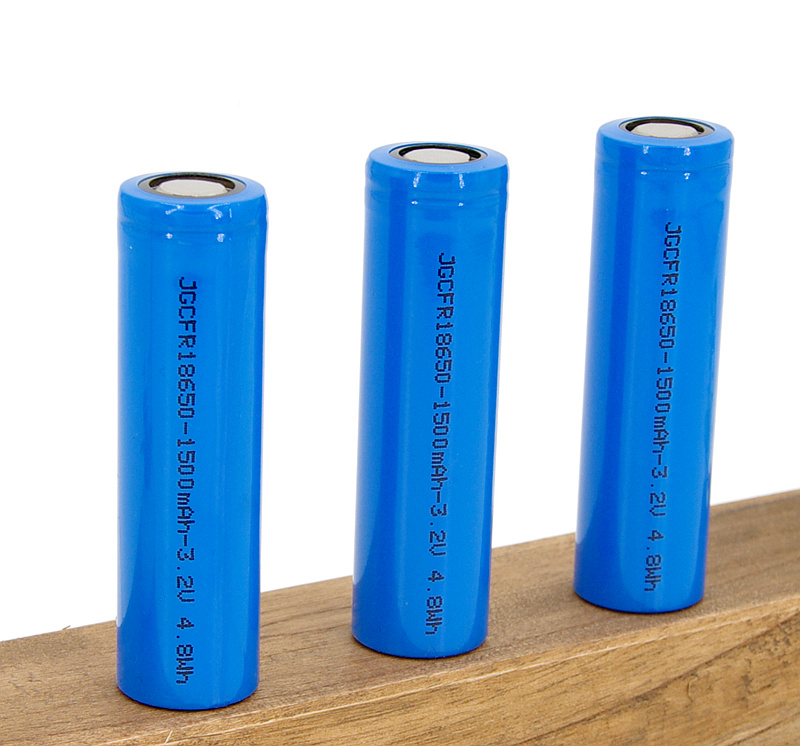

1ICR 18650 1500mAh 3.2v

Main technical parameter of the 18650 1500mAh low temperature lithium batteries:NO.ItemStandardNote1Standard Capacity1600 mAh0.5C,(current value of 1600mA at 1C)2Minimum Capacity1
Send Inquiry
Description
Argument
Products Description

Main technical parameter of the  18650 1500mAh low temperature lithium batteries:

NO.ItemStandardNote
1Standard Capacity1600 mAh0.5C,(current value of 1600mA at 1C)
2Minimum Capacity1550mAh0.5C
3Standard Voltage3.2 V
4Alternating Internal Resistance≤25mΩ25±2°C AC 1KHz Measurement

5

Charge Conditions

Cut-off Voltage3.65 Vconstant-current charge to 3.65V at 0.5C, constant voltage charge to stop until 0.01C m A.
Cut-off Current16mA
6Max. Charging Current1.6A
7Discharge Cut-off Voltage2.5Vconstant current discharge
8Standard Discharge Current0.8A

9

Fast Discharge Current

1.6A

This current is the maximum current recommended for the combination of cores, and the specific value should be determined according to the combination structure. The maximum operating current is set at a temperature not

exceeding 60 ℃.

10Max. Continuous Discharge Current4.8AOnly for single cell
11Pulse Discharge Current10A,5s

12

Cycle Characteristic

2000 times(100%DOD)

1C charging/10C discharging, capacity retention rate ≥70%.

4000 times(80%DOD)
7000 times(50%DOD)

13

Storage Temperature

-20℃~55℃

Short-term storage (< 1 months)

-20℃~45℃

Short-term storage (< 3 months)

-20℃~25℃

Short-term storage (< 12 months)

14Cell WeightApprox 39.5gIncludes casing

15

Working Temperature

Charge: 0℃~55℃
Discharge:-20℃~60℃
