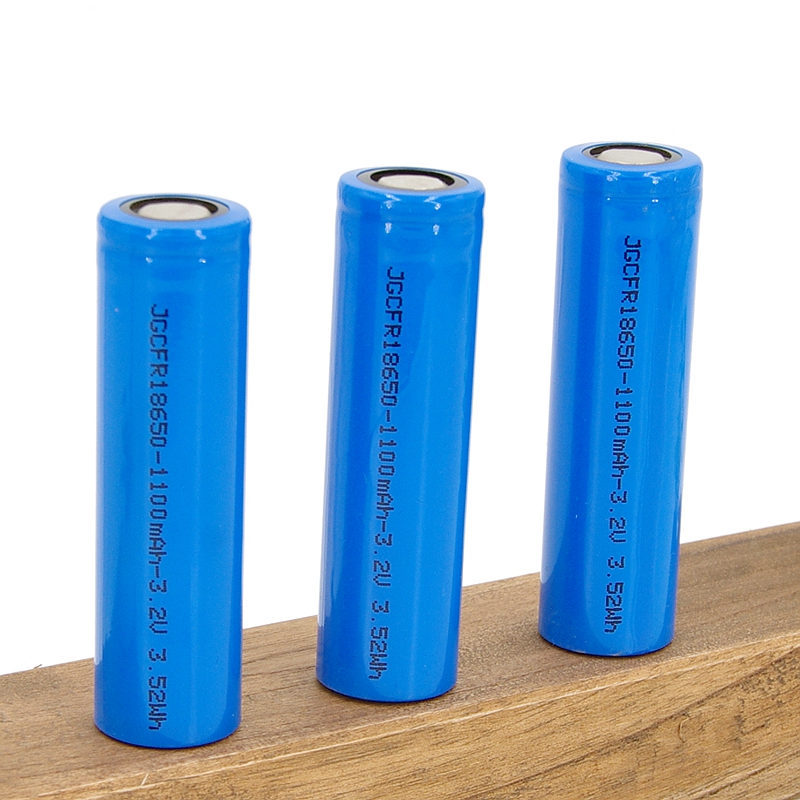

ICR 18650 1100mAh 3.2v

Description

Argument

NO.	Item		Standard	Note
1	Standard Capacity		1100 mAh	0.5C,(current value of 1100mA at 1C)
2	Minimum Capacity		1050mAh	0.5C
3	Standard Voltage		3.2 V
4	Alternating Internal Resistance		≤18mΩ
5	Charge Conditions	Cut-off Voltage	3.65±0.05V	constant-current charge to 3.65V at 0.5C, constant voltage charge to stop until 0.01C m A.
5	Charge Conditions	Cut-off Current	0.01C
6	Max. Charging Current		5.5A
7	Discharge Cut-off Voltage		2.5V
8	Standard Discharge Current		5.5A
9	Fast Discharge Current		11A	This current is the maximum current recommended for the combination of cores, and the specific value should be determined according to the combination structure. The maximum operating current is set at a temperature not exceeding 60 ℃.
10	Max. Continuous Discharge Current		33A	Only for single cell
11	Pulse Discharge Current		40A，10s
12	Cycle Characteristic		500 times（100%DOD）	1C charging/10C discharging, capacity retention rate ≥70%.
			1000 times（80%DOD）
			3000 times（50%DOD）
13	Storage Temperature
			-20℃～55℃	Short-term storage (< 3 months)

14	Cell Weight		Approx 39.5g	Includes casing
15	Working Temperature		Charge: 0℃～55℃
15	Working Temperature		Discharge：-20℃～60℃
